Position Sensors

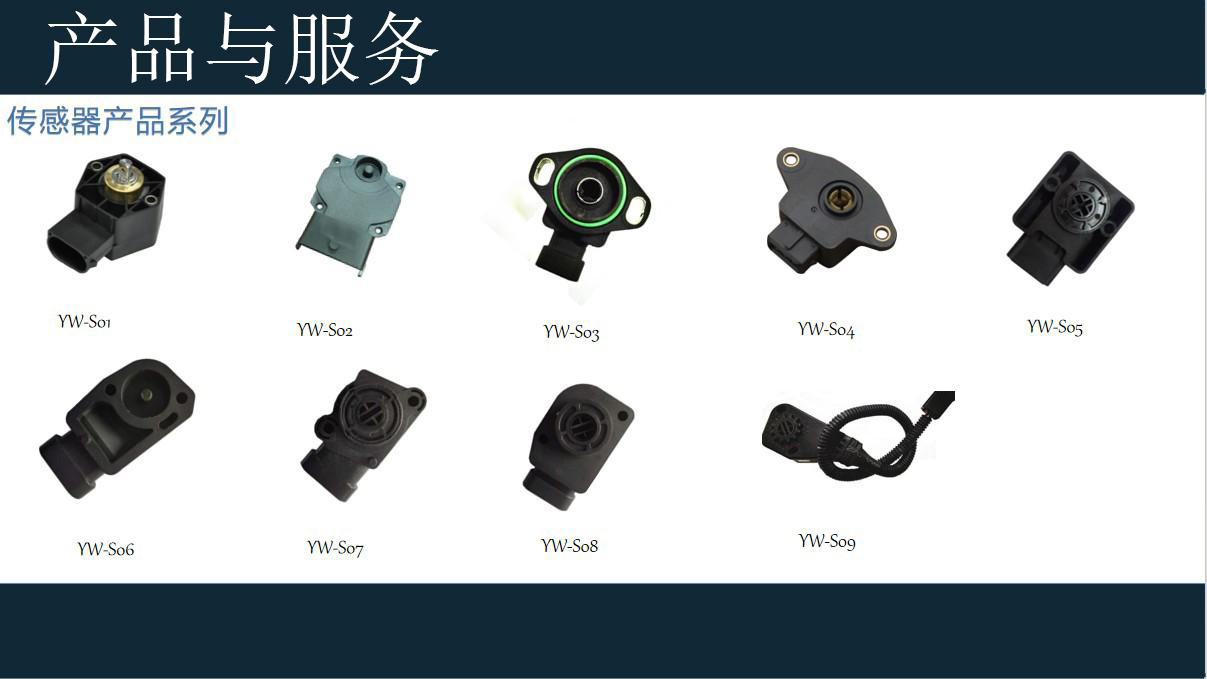

Angle Position Sensor Series
Rotary angle sensors for pedal, throttle and linkage position feedback.
Overview

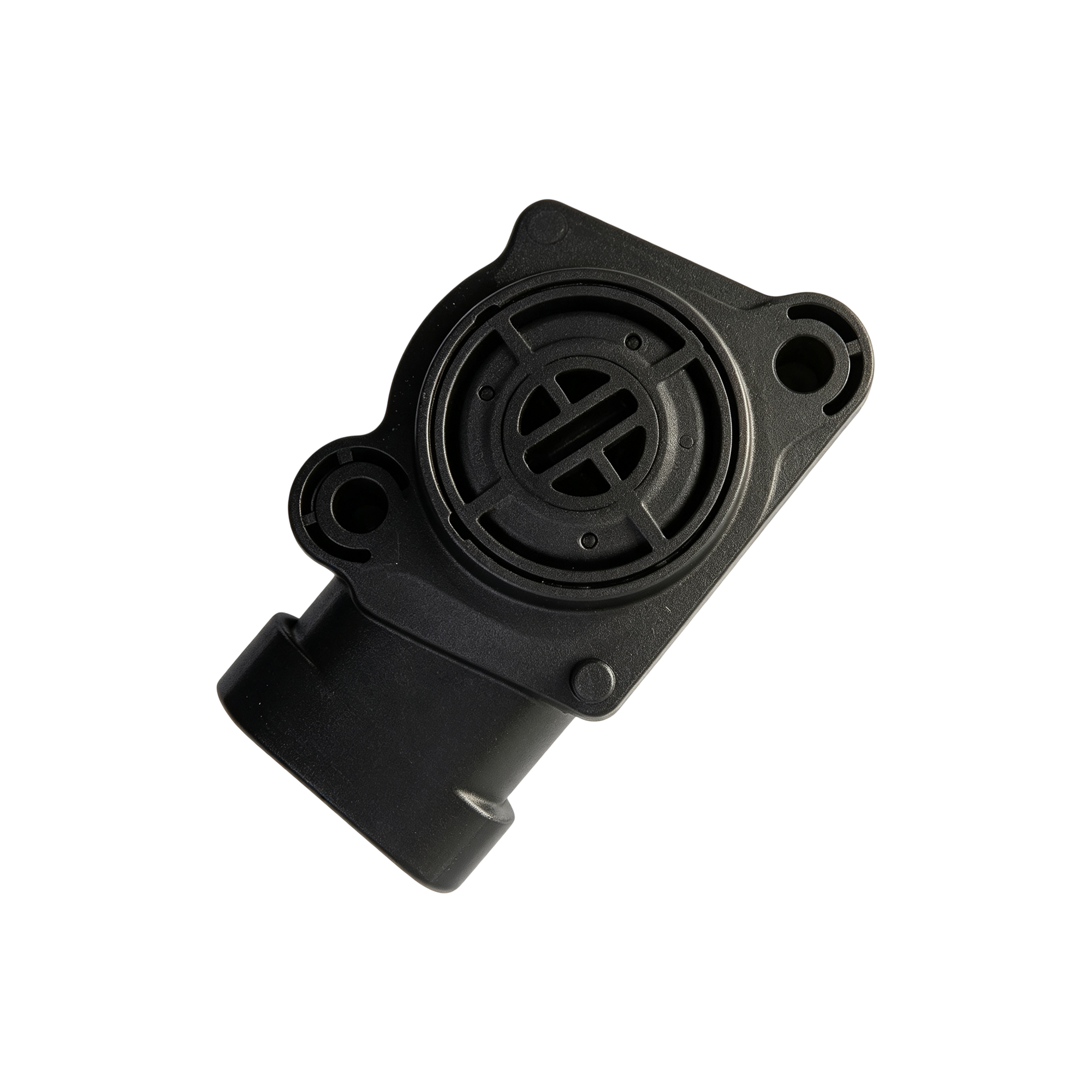

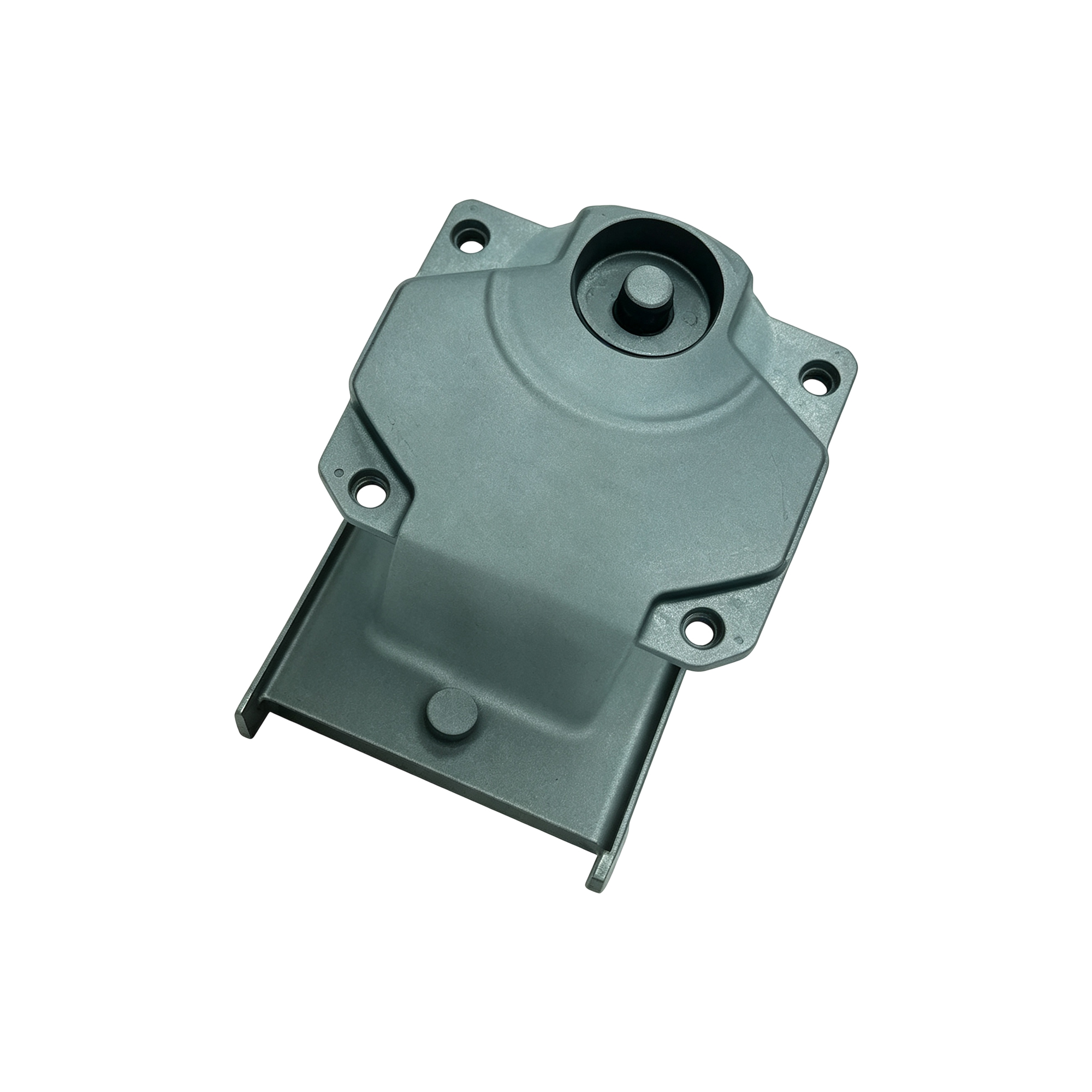

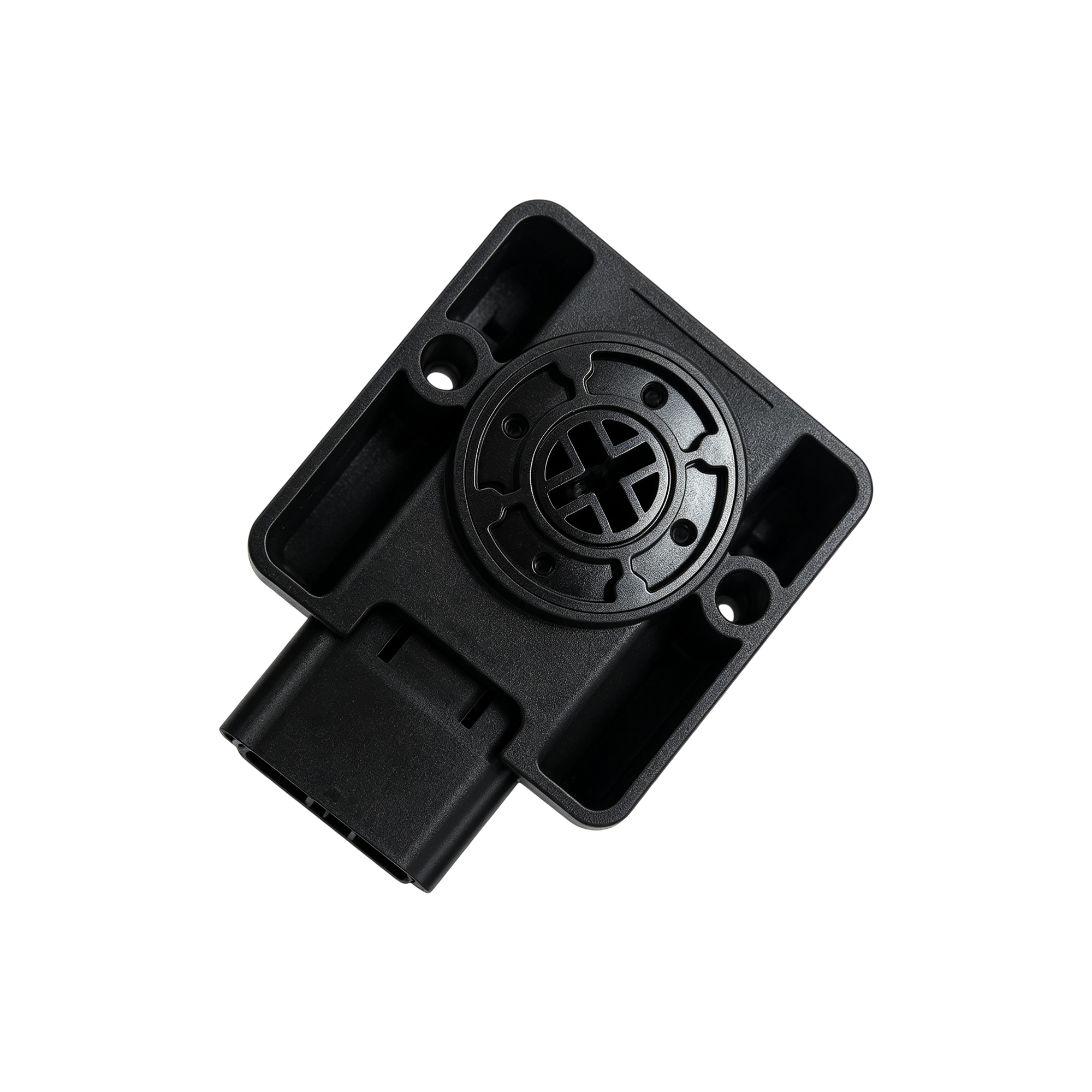

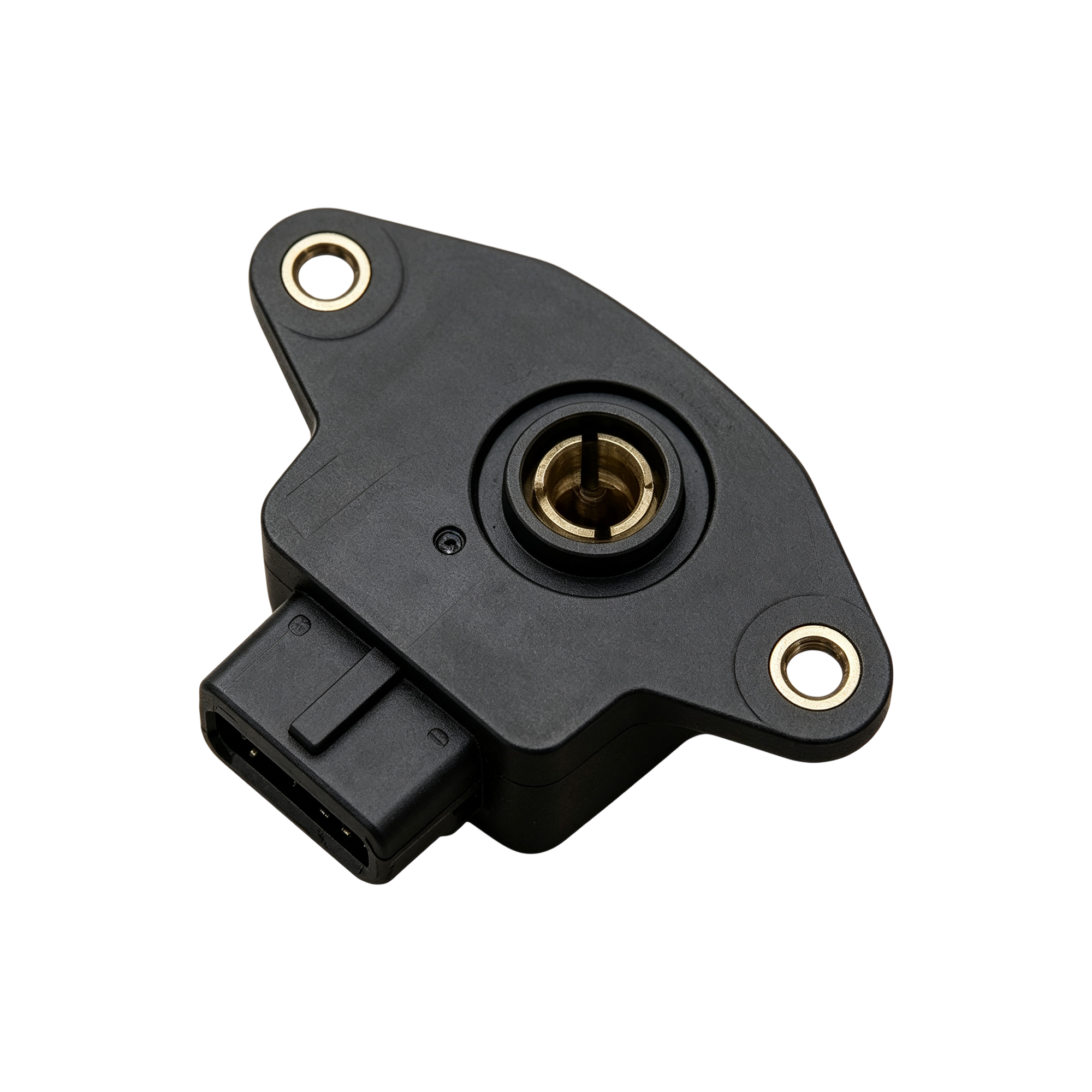

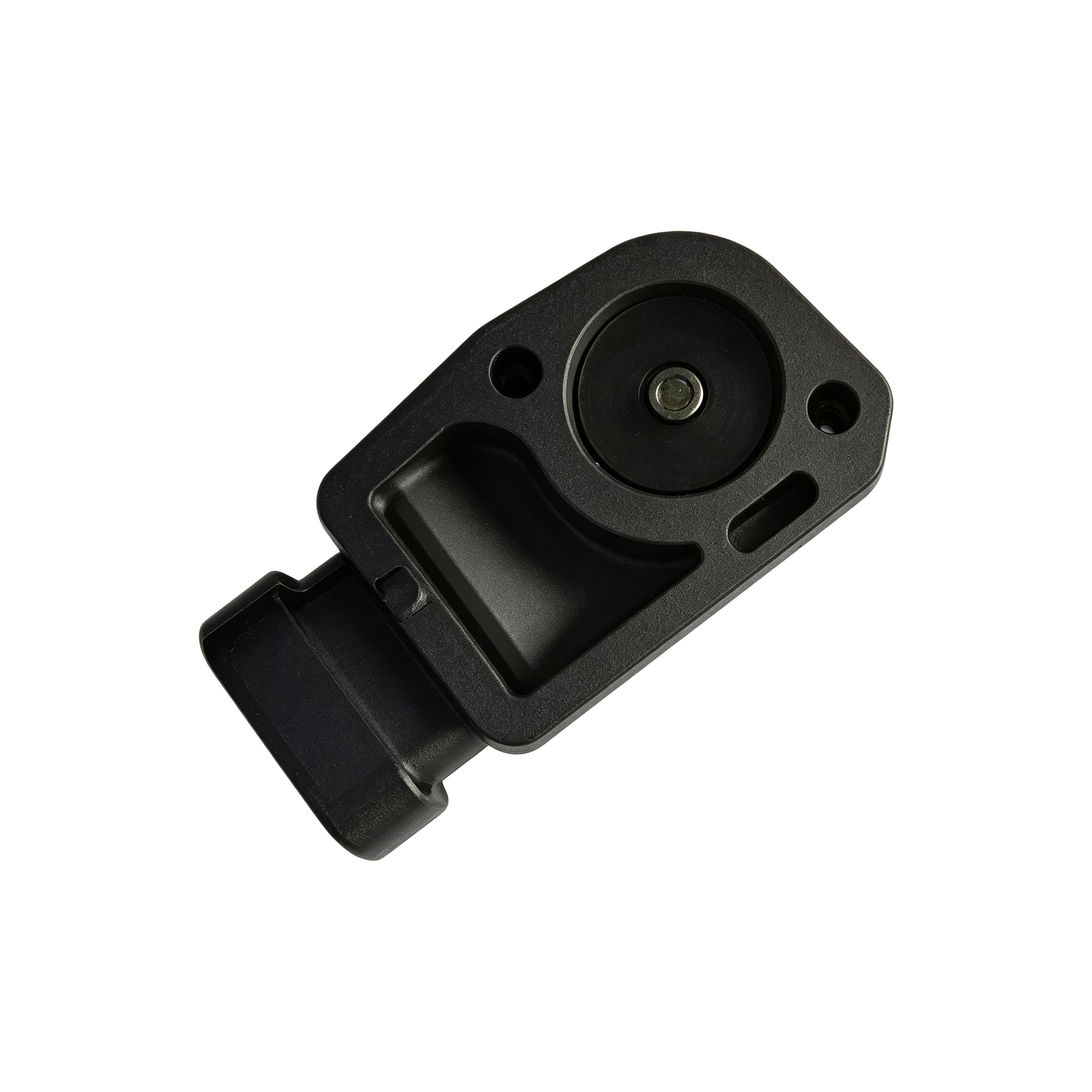

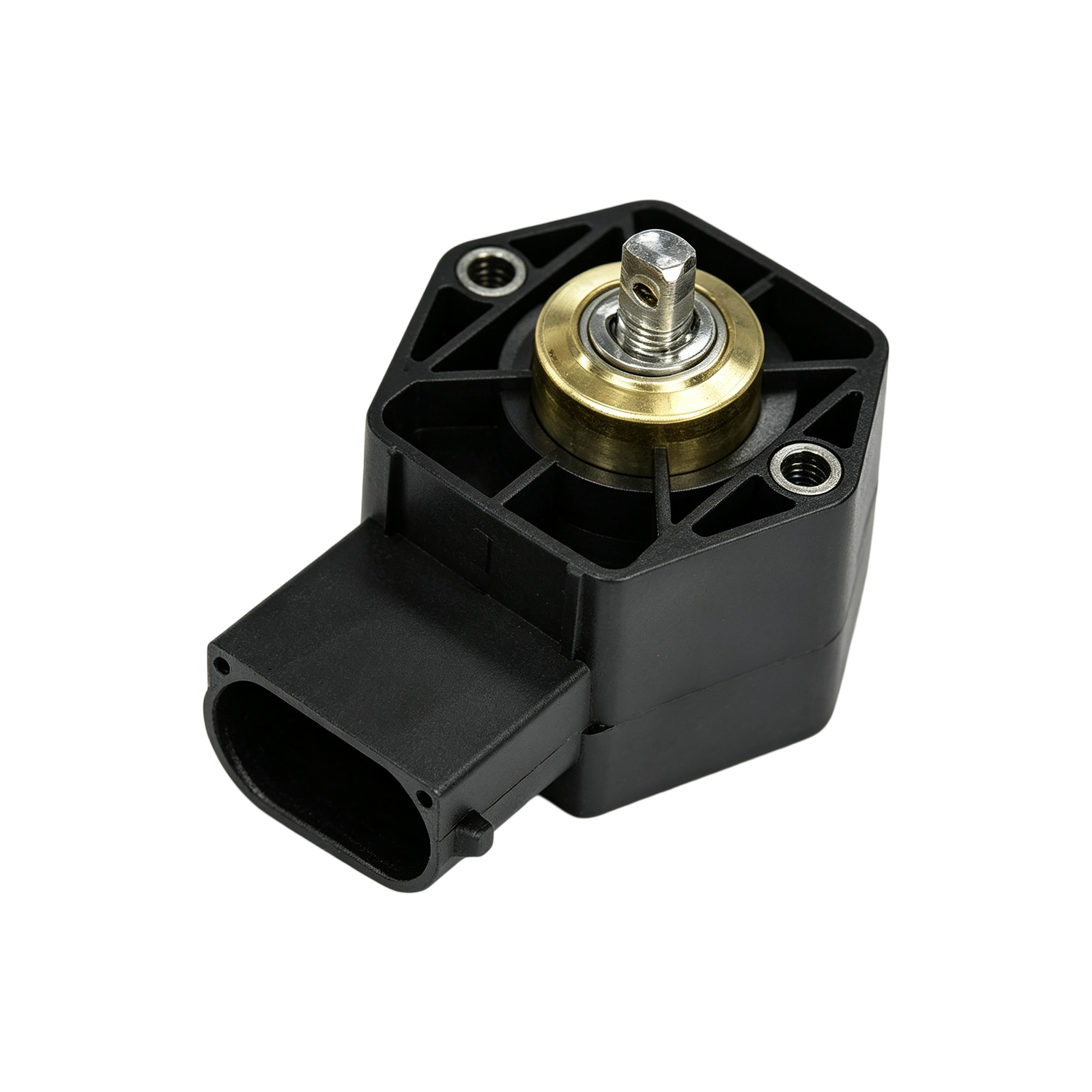

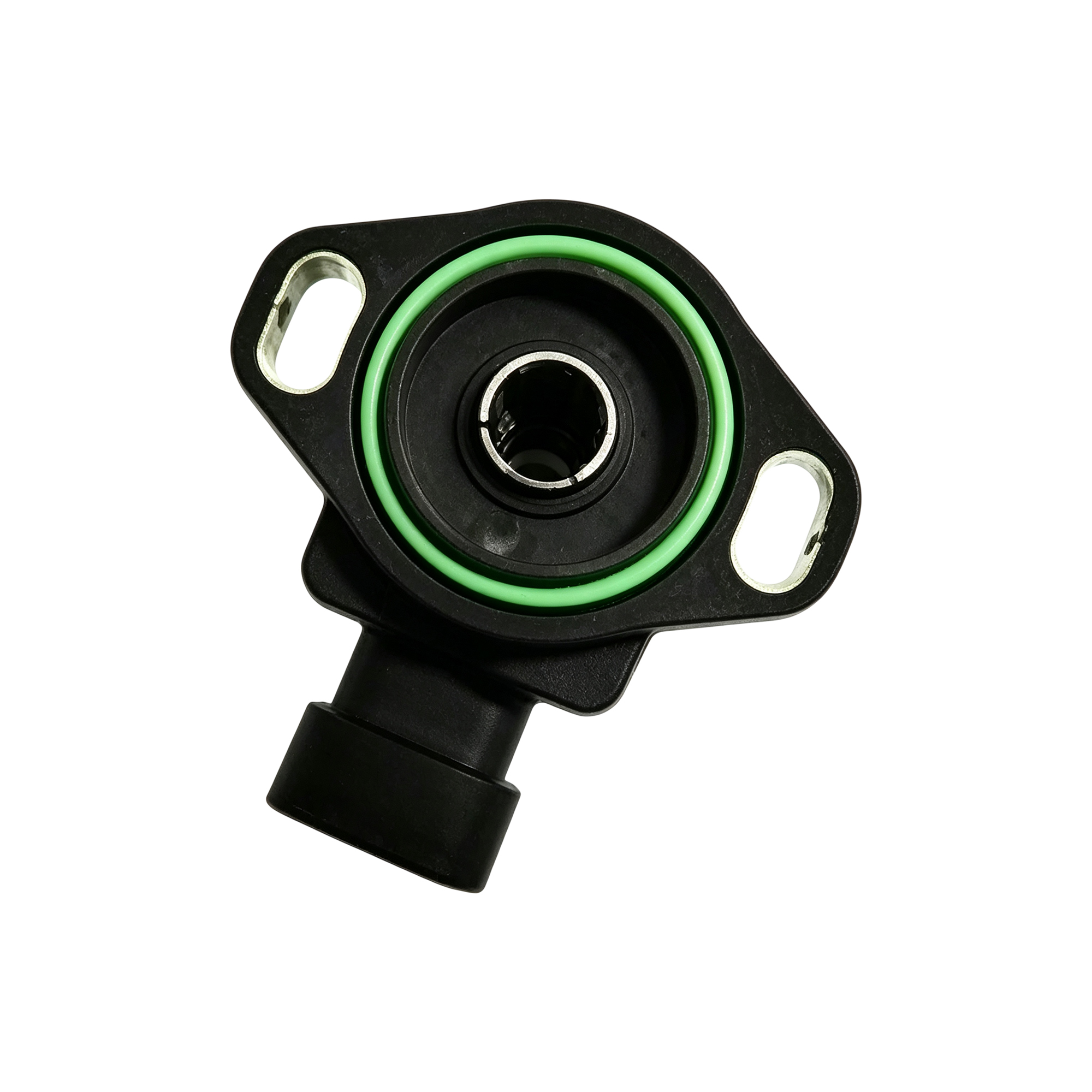

A series of rotary angle position sensors used to convert mechanical rotation, such as pedal or throttle linkage movement, into an electronic position signal. The sealed housing and O-ring interface protect the sensing element from the vehicle environment.
Shaft profile, mounting flange and connector pattern vary by series and application; confirm the exact variant against the requesting platform before specification.
Applications
- Commercial Vehicles
- Buses
- Engineering Machinery
- New-Energy Systems
Specification Points
- Sealing
- O-ring sealed housing interface
- Function
- Rotary position-to-electronic signal conversion
- Mounting
- Two-point flange with mounting ears
- Interface
- Wired electrical connector
Exact configuration is confirmed against your platform requirements prior to order confirmation.
